Wireless Communication Setup:
The wireless setup is a two-step process for a 3- and 4-way Dimmer Switch configurations. First, you will pair the primary Dimmer Switch to the secondary Dimmer Switch, then you will add the primary Dimmer Switch to your Wi-Fi® network.
1. Ensure power/breaker is turned back ON and the LED on both Dimmer Switches are solid purple.
2. Locate the primary Dimmer Switch. Hold 6 until the LED rapidly flashes blue (3 seconds), then release. Then, tap 1 to enter pairing mode. The LED will slowly flash blue.
Next, locate the secondary Dimmer Switch. Repeat the steps above on the secondary Dimmer Switch by holding 6 until the LED rapidly flashes blue (3 seconds), then release. Next, tap 1 to begin the pairing mode. The LED will flash blue slowly.
The secondary Dimmer Switch will search and pair to the primary Dimmer Switch. The LED on each Dimmer Switch will rapidly blink green 5 times and each Dimmer Switch will beep 5 times to indicate the pairing process is complete.
For 4-way, repeat the steps above again to pair the primary Dimmer Switch to the remaining secondary Dimmer Switch.
Connecting To The Wireless Network:
1. On the primary Dimmer Switch, press and hold 6 for 3 seconds and release when the LED rapidly flashes blue. Next, Tap 2 to begin the Wi-Fi connection process.
2. Launch the iDevices Connected app and you will be guided through the process of connecting your Dimmer Switches.
Before pairing the iDevices product to your Wi-Fi® network, ensure that your Wi-Fi network is running on a 2.4 GHz b/g/n Wi-Fi band and using either None, WPA or WPA2 network security with AES encryption. If you have multiple wireless networks such as a guest network, a 2.4 GHz network, and a 5 GHz network, please connect your phone or tablet to the 2.4 GHz network for initial setup. iDevices products can't be set up on guest networks. Download the latest version of the iDevices Connected app here:
In this example setup, we’ll be using an iDevices Switch. The setup process is similar for each iDevices product.
1. Please ensure Bluetooth is enabled on your Android device. Bluetooth is used to pair your Android device and Smart Home product.
2. Please ensure Wi-Fi is enabled is enabled on your Android device. After pairing is complete, all communication between your Android device and iDevices product is done via Wi-Fi.
3. Make a note of your Wi-Fi network name and password for later in the setup process.

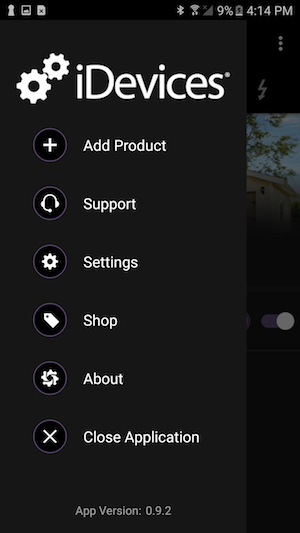

4. Locate and launch the iDevices Connected app, if this is your first iDevices product you will be walked through setting up your home.
5. Tap "Setup Now" to sync the home data to a chosen Google account.
6. Add your Home Location. This allows the iDevices Connected app to get an estimated energy cost for your area, if your iDevices product supports Energy Reporting.
7. Select the device you are adding to the iDevices Connected app and confirm the product is ready to be setup. Then, tap “Yes, I am Ready.” The iDevices Connected app may walk you through additional steps to determine the product is ready to set up.
8. The app will locate any products in range. Tap the product in the app and confirm the product identified itself, tap "Yes" to continue. If you did not see the product identify itself, tap "No" and select another device.
9. The iDevices Connected app will being the pairing process to the product. Hold your Android phone or tablet within 1 inch of the product, as the app uses Bluetooth proximity to establish the initial connection.

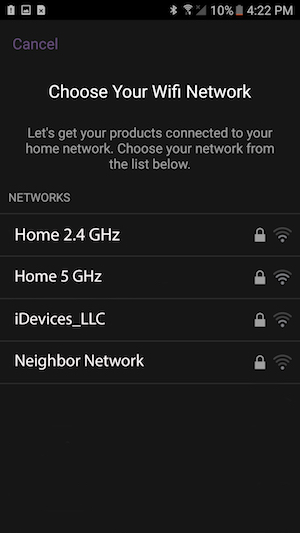

10. Choose the 2.4 GHz Wi-Fi network your Android device is connected to and enter the password. Then, tap "Next" to connect the product to your Wi-Fi network.
11. After the Wi-Fi connection is complete, the app will walk you through running any necessary firmware updates.

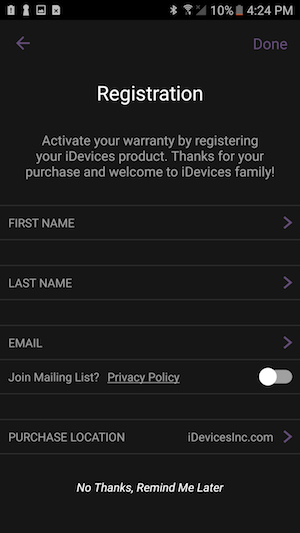

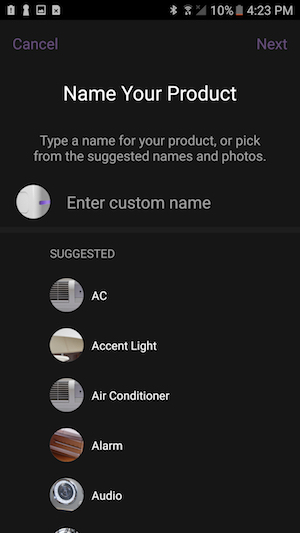

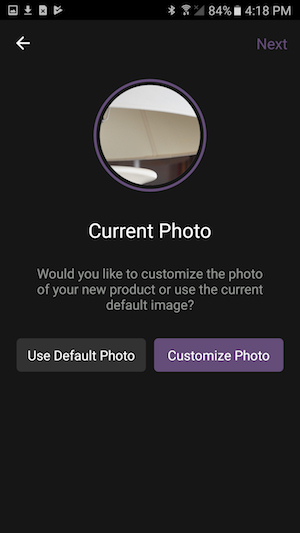

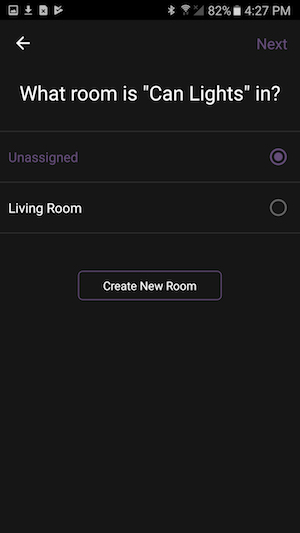

12. Next, the iDevices Connected app will walk you through setting the product name, photo and any additional customizations for your specific product.

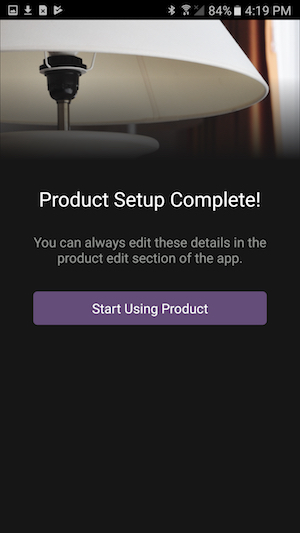

13. The setup is complete – you can now use your product!
